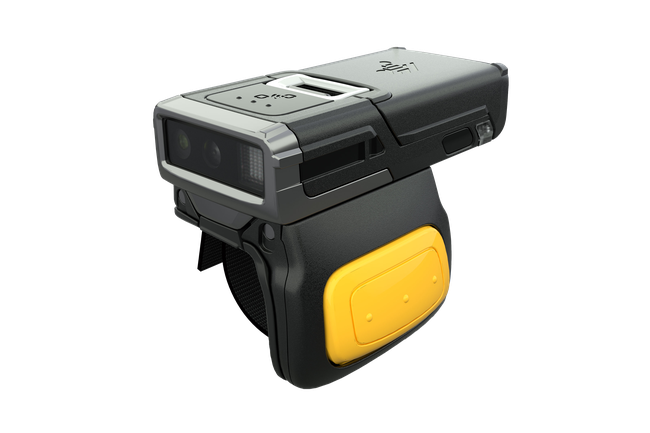

Zebra RS5100 Bluetooth Wearable Scanner

Zebra RS5100 Bluetooth Wearable Scanner


The RS5100 sets a new standard for wearable rugged Bluetooth ring scanners. Workers get featherweight comfort, ergonomic mounting options, maximum ease-of-use, plus reliable point-and-shoot scanning on every barcode. The RS5100’s rugged design is built for industrial environments like the warehouse and manufacturing floor, while its modern design and small footprint make it equally suited for customer-facing areas. You also get a long lifecycle, industry-leading scanning options to meet different needs and backroom accessories that reduce management time and cost.


  • transport
  • retail
  • manufacturing
  • warehouse management
  • healthcare
  • hospitality

Technical specifications



2.67 in. L x 1.10 in. W x 0.83 in. D (2.4 cubic inches)
61 mm L x 28 mm W x 21 mm D



2.47 oz./70 g

Drop Spec

Multiple 6 ft./1.8 m drops to concrete over the operating temperature range


Operating System

32° F to 122° F/0° C to 50° with standard battery
-4° F to 122° F/-20° C to 50° with extended battery


Connectivity and pairing

NFC; Tap to Pair
Bluetooth Class 1 and 2
Bluetooth v4.0 with Bluetooth Low Energy (BLE)


Scanning Options

SE4710 or SE4770 1D/2D standard range imaging engines
