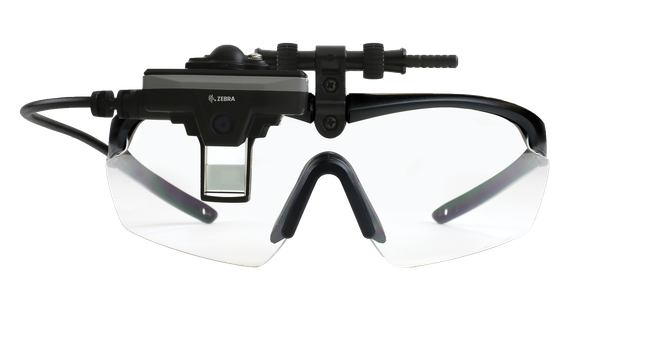

Zebra HD4000 Enterprise Head-Mounted Display

Developed in collaboration with Six15 Technologies, a leader in wearable optical displays, the HD4000 delivers unmatched color, contrast and image clarity, plus a focal distance that is optimized for head-mounted applications to minimize eye fatigue.

The accessory architecture eliminates the need for an integrated battery, processor and wireless radios. Only components required to deliver augmented reality functionality are required — a display, camera, head tracker and microphone. As a result, the HD4000 weighs about an ounce — significantly lighter than any other enterprise wearable display.

Scope:

• manufacturing
• retail
• field mobility
• warehouse management

Technical specifications:

Display

Full Color OLED 640 x 400 Pixels

Field of view

20.3' Diagonal

Eye Box

7.5 X 9mm

Eye Relief

18mm

Brightness

300 cd/m^2

Camera

5 MP, Fixed Focus

Head Tracker

9-axis integrated sensor
