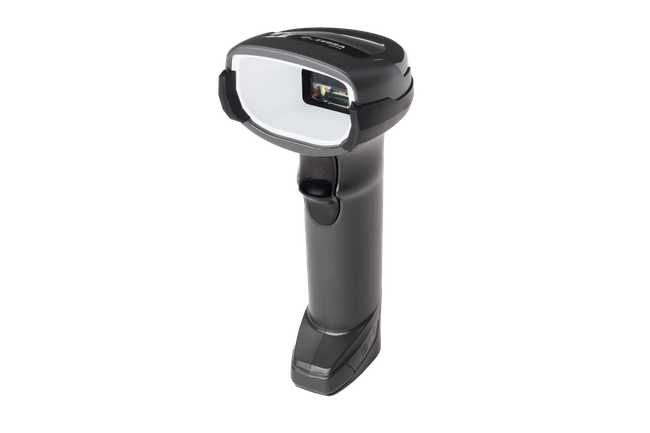

Zebra DS4600 Series for Electronics Manufacturing
No matter what type of marks and barcodes are found in your electronics manufacturing operations, you can capture them all. The DS4600 Series for Electronics Manufacturing easily reads tiny and dense barcodes printed on plastic and metal subcomponents, including laser etched direct part marks. And the same imager can read 4-inch wide barcodes found on carton labels and packages.
A patented rear engine design creates more room for a built-in diffuser—providing optimal illumination on a wide variety of surfaces. Indirect lighting enables the capture of marks printed on shiny and reflective surfaces, while direct light provides the bright light needed to successfully read low contrast barcodes and laser etched DPM codes on plastic and metal subcomponents.
On the production line, a traditional beep tone can be hard to hear. That’s why the DS4600 Series for Electronics Manufacturing offers multiple feedback modes including haptic/vibration, a good decode LED that’s visible from any position, a beep tone and Zebra’s Direct Decode Indicator that projects the illumination on the barcode.
Scope:
- manufacturing
Technical specifications
Dimensions
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.7 cm W x 9.8 cm D
Weight
5.7 oz. / 161.9 g
Colour
Twilight Black
Sealing
IP52
Drop Tolerance
Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Decode Capability
1D, 2D, PDF417
Scanning Tehnology
Array imager
