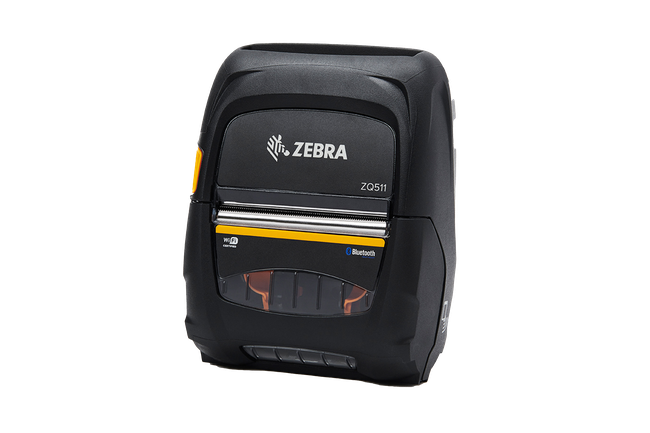

Zebra ZQ500 Series Mobile Printers
Extreme environments, bangs and bumps are no match for ZQ500 Series printers. Engineered with military-grade durability, they can withstand significant drops to concrete, sprayed liquids, dirt, accidents and more that are common in mobile workplaces. Large buttons and a user-friendly interface make these printers easy to operate, even when wearing gloves. Loaded with premium features and a high-capacity battery, they help boost productivity and work as long and hard as you do.
The ZQ511™ and ZQ521™ advance the series with added ruggedness and features. Tumble tested to handle 1300 tumbles from 3.3Ft. (1M), they also have an over-molding to increase longevity. And, both are available in linerless or RFID models. Maximize your investment with their 2-year standard warranty.
Featuring Zebra’s exclusive Print DNA suite of tools, ZQ500 Series printers are easy to integrate, maintain and manage – even over Bluetooth. And, they have unmatched intelligence and security.
Scope:
- transportation
- retail
- manufacturing
- warehouse management
- hospitality
- healthcare
Technical specifications
Print Width
ZQ511/ZQ511 RFID/ZQ510
2.83in./72 mm
ZQ521/ZQ521 RFID/ZQ520/ZQ520 RFID
4.1in./ 105mm
Print Speed
ZQ511/ZQ521/ZQ511/ZQ521 RFID/ZQ510/ZQ520/ZQ520 RFID
Up to 5in./127mm per second
Durability
ZQ511/ZQ521/ZQ511 RFID/ZQ521 RFID
IP54-rated for dust and liquid protection
(IP65-rated with the exoskeleton case)
6.6ft. (2m) drops to concrete multiple times
(10ft. / 3m with the exoskeleton case)
Tumble-tested up to 1300 times from 3.3ft. (1m)
ZQ510/ZQ520/ZQ520 RFID
IP54-rated for dust and liquid protection
(IP65-rated with the exoskeleton case)
6.6ft. (2m) drops to concrete multiple times
(10ft./ 3m with the exoskeleton case)
Media Roll Outer Diameter
ZQ511/ZQ511 RFID/ZQ510
2.0in./51 mm
ZQ521/ZQ521 RFID/ZQ520/ZQ520 RFID
2.24in./57 mm
Weight
ZQ511/ZQ511 RFID/ZQ510
1.39 lbs/0.63 kg with battery
ZQ521/ZQ521 RFID/ZQ520/ZQ520 RFID
1.73lbs/0.79 kg with battery
Battery Capacity
ZQ511/ZQ521/ZQ511 RFID/ZQ521 RFID/
PowerPrecision Plus 3250 mAh removable Lithium Ion Smart Battery (7.4V)
(4900 mAh extended battery optional)
ZQ510/ZQ520/ZQ520 RFID
PowerPrecision Plus 2450 mAh removable Lithium Ion Smart Battery (7.4V)
(4900 mAh extended battery optional)
