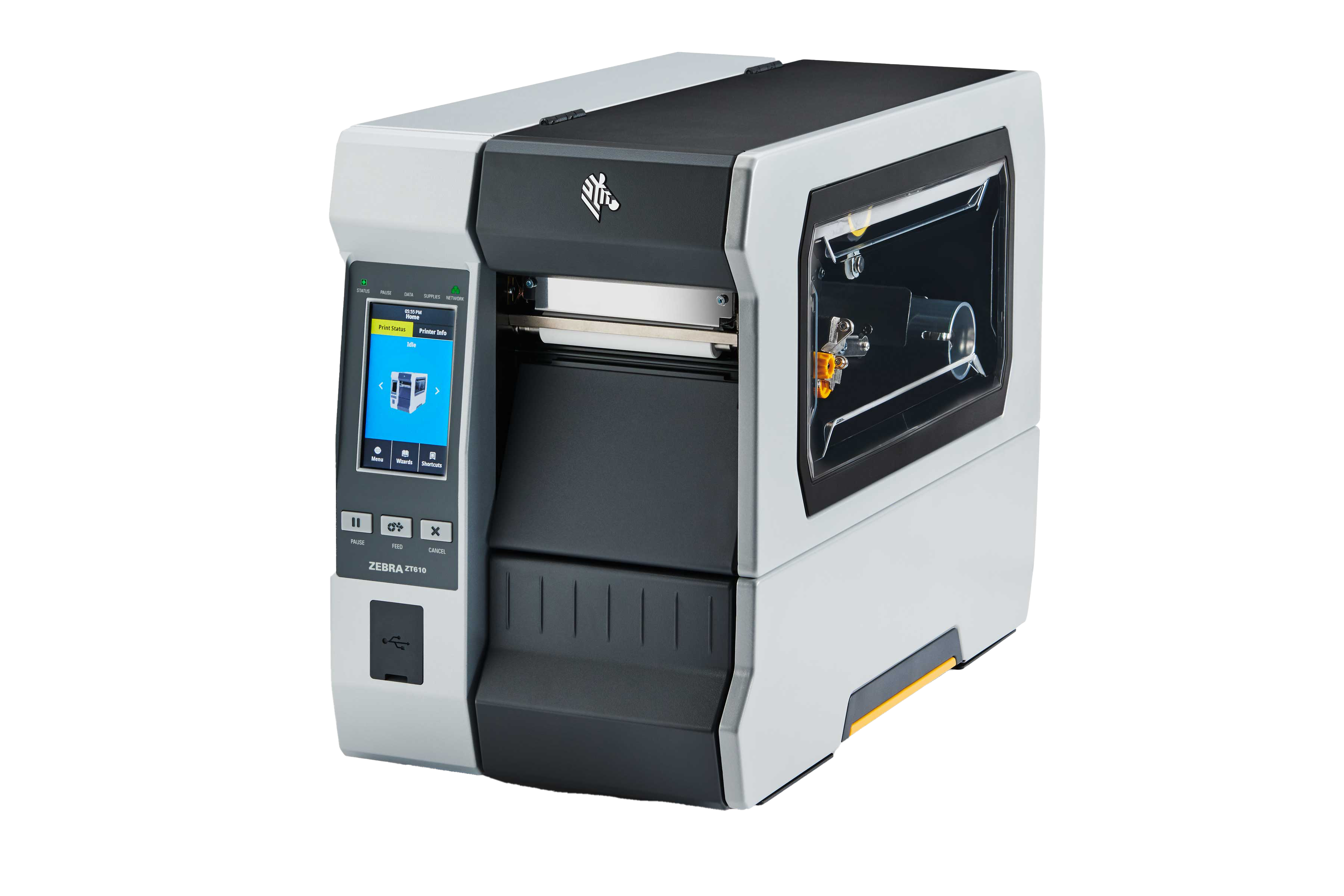

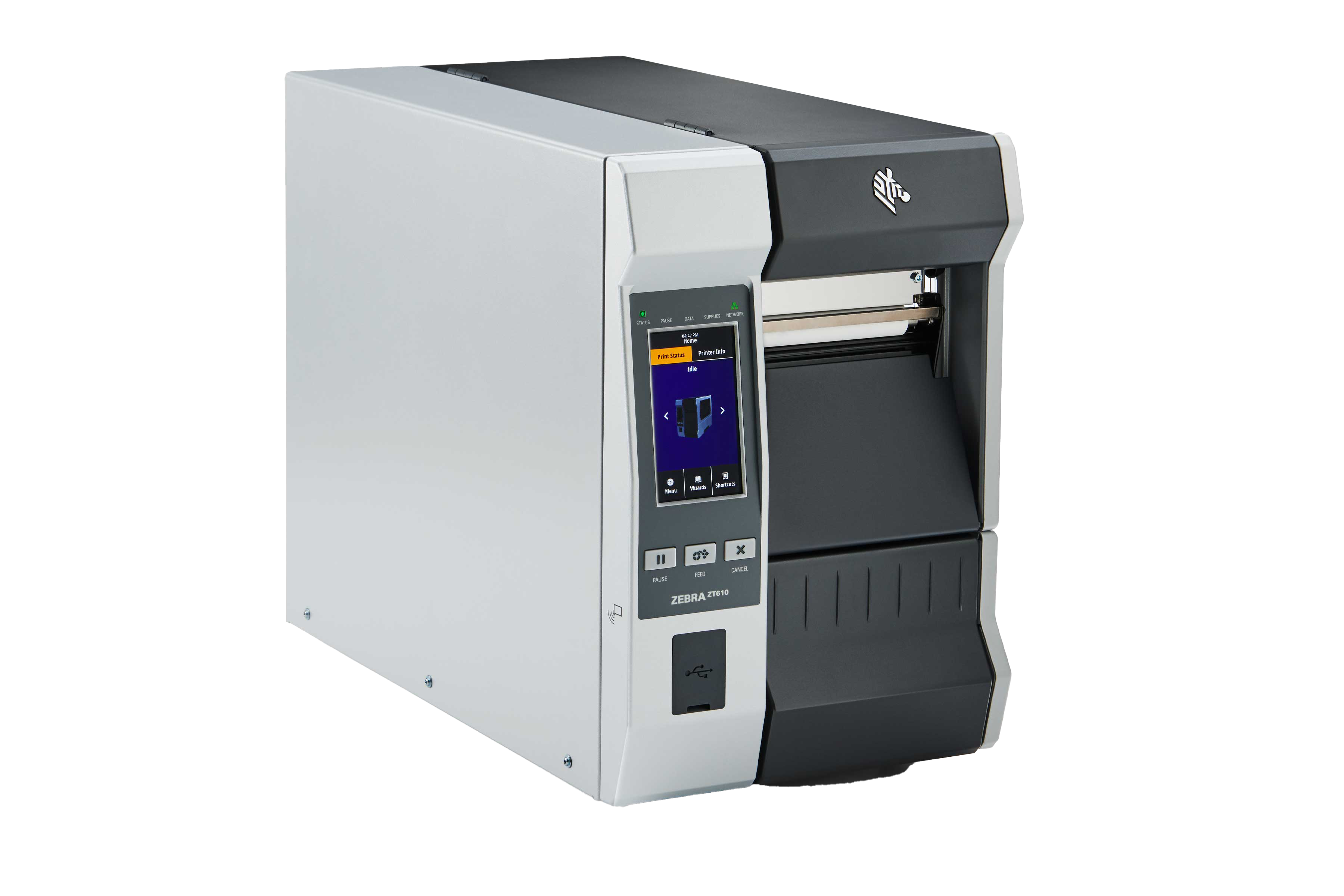

Zebra ZT600 RFID Series Industrial Printers

Zebra ZT600 RFID Series Industrial Printers

STRONG, SMART AND SCALABLE RFID ENCODING

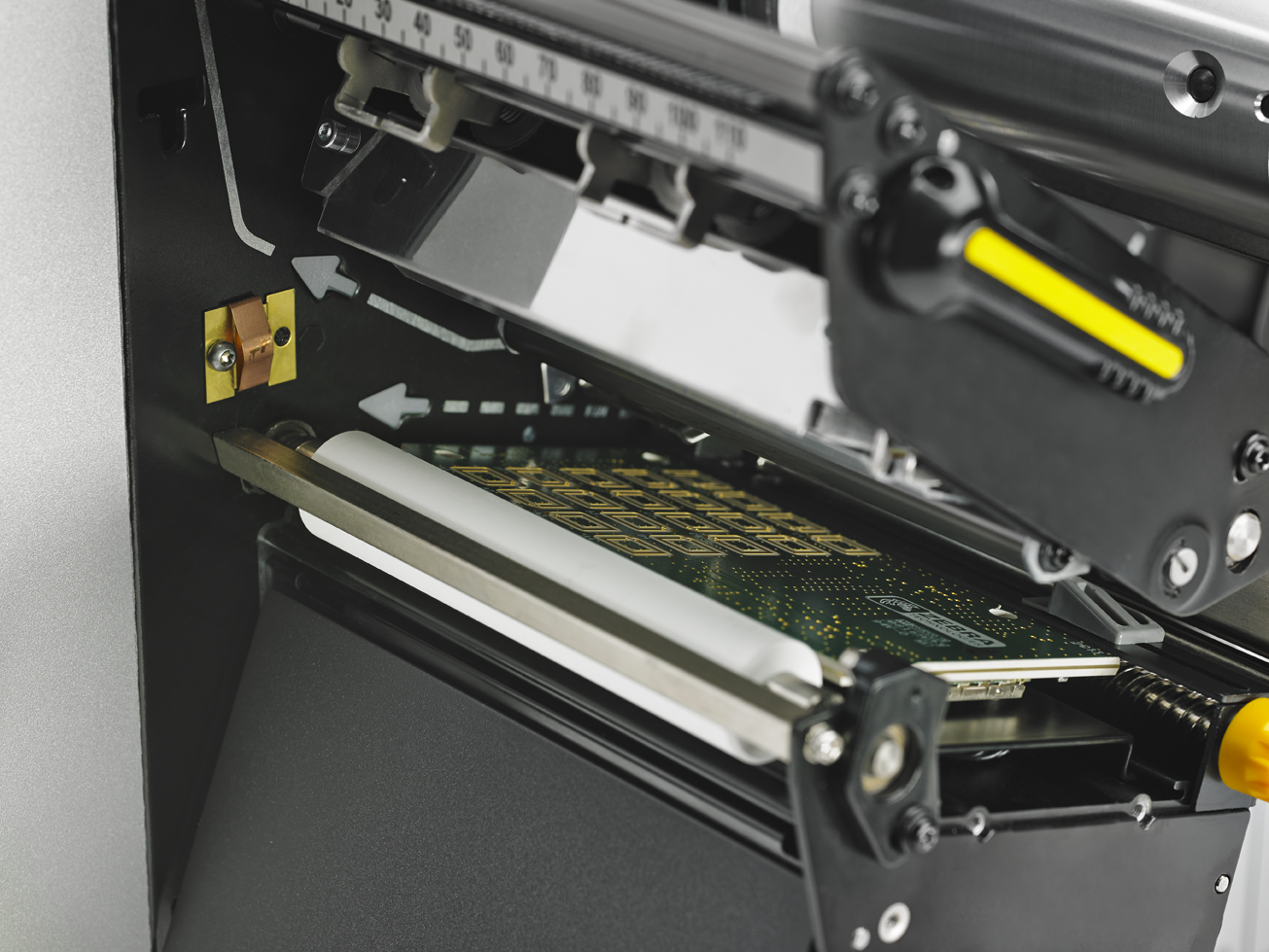

ZT600 Series printers combine industrial durability and user-friendly features with future-proof adaptability — including a factory- or field-installable RFID encoder — to meet your evolving needs for years to come. Gain greater visibility of your printing systems with Link-OS applications and managed operational and asset visibility services (OVS/AVS), plus the ability to deepen your insight into your entire business with advanced RFID printing and encoding.

EXCEPTIONAL PERFORMANCE

Get the exceptional performance you need to keep mission-critical operations running smoothly, plus intelligent, user-friendly features that give you total visibility and control at all times with 4-inch (104 mm) width, 600 dpi printing on the ZT610.

Scope:

  • healthcare
  • transportation
  • manufacturing

Technical specifications

Print Width

ZT610 RFID

4.09“ / 104 mm

ZT620 RFID

6.6“ / 168 mm



Maximum print speed

ZT610 RFID

Up to 14“ / 356 mm per second

ZT620 RFID

Up to 12“ / 305 mm per second

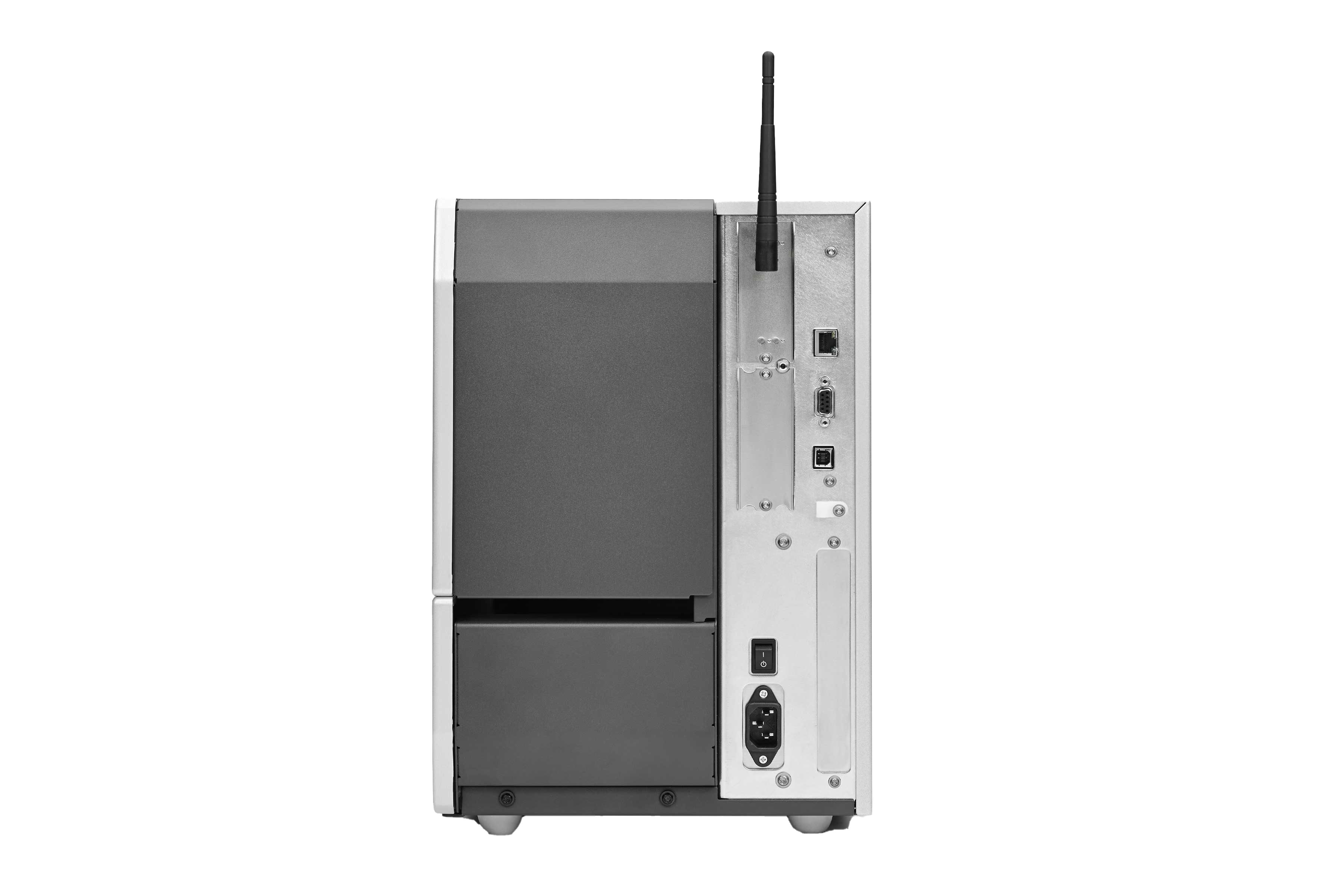

Communication methods

ZT610 RFID

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

ZT620 RFID

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet and applicator interface.IPv6 option is available as an external dongle attached to a parallel port.



Print Resolution

ZT610 RFID

203 dpi resolution

300 dpi resolution (optional)

600 dpi resolution (optional)

ZT620 RFID

203 dpi resolution

300 dpi resolution (optional)



Media Sensors

Dual media sensors: Transmissive and reflective (ZT610R&ZT620R)
